SNES Hardware Revisions
Author Message
User avatar

Joined: 2014-09-25 13:52
Posts: 8242
 SNES Hardware Revisions
I'm trying to catalog and obtain every type of SNES console, if at all possible. I'd also like to understand what makes them different. Any help would be appreciated.

I'm especially curious about what the APU and GPM revisions changed / were for. Missing board revisions are also welcome.

What I know of:

SHVC-CPU-01
* original 1/1/1 release
* APU is a separate module
* cartridge connector can be removed

SNS-CPU-APU-01
???

SNS-CPU-GPM-01
???

SNS-CPU-GPM-02
???

SNS-CPU-RGB-01
* 2/1/3 release
* APU is integrated onto the board itself
* cartridge connector cannot be removed

SNS-CPU-RGB-02
???

SNS-CPU-1CHIP-01
* 2/1/3 release
* CPU/PPU is integrated
* SMP/DSP is integrated

SNS-CPU-1CHIP-02
???

SNS-CPU-1CHIP-03
* CSYNC is no longer connected

SNN-CPU-01
* R/G/B/CSYNC/Y/C are no longer connected
* expansion port is removed
* CPU/PPU is integrated
* SMP/DSP is integrated

What I own:

Super Famicom - Japan:

S23732094 SNS-CPU-RGB-01 (2/1/3)

SM11139738 SNS-CPU-RGB-01 (2/1/3)

Super Nintendo - North America:

UN30908024(6) SNES-CPU-1CHIP-01

UC305799180 SNN-CPU-01 (1CHIP)

(Sadly, I got rid of my dead JP 1/1/1 to conserve space.)

_________________
What the hell's going on? Can someone tell me please?
Why I'm switching faster than the channels on TV.
I'm black, then I'm white. No, something isn't right.
My enemy's invisible, I don't know how to fight.


2015-11-30 08:14

Joined: 2014-09-27 09:44
Posts: 965
 Re: SNES Hardware Revisions
Finally, the thread I was waiting for.

Still undecided about which Super Famicom, besides Higan, I should buy.

_________________
"Even if b became the most amazing programming language the world has ever seen, I would not rewrite higan/icarus in it. I can 100% guarantee you of that." — byuu


2015-11-30 12:07
User avatar

Joined: 2014-09-27 09:22
Posts: 5140
Location: A chair.
 Re: SNES Hardware Revisions
Braintrash wrote:
Finally, the thread I was waiting for.

Still undecided about which Super Famicom, besides Higan, I should buy.

ALL OF THEM.

_________________
Just in case you thought something could EVER be straightforward, and needed someone to dash your hopes across the rocky shoals of harsh reality.

; write !!!


2015-11-30 12:18

Joined: 2014-09-27 09:44
Posts: 965
 Re: SNES Hardware Revisions
Don't tempt me. It is my favorite console.

_________________
"Even if b became the most amazing programming language the world has ever seen, I would not rewrite higan/icarus in it. I can 100% guarantee you of that." — byuu


2015-11-30 12:25
User avatar

Joined: 2014-09-27 09:22
Posts: 5140
Location: A chair.
 Re: SNES Hardware Revisions
Braintrash wrote:
Don't tempt me. It is my favorite console.

At least going down that rabbit hole is simpler than getting all the Genesis variants. :P


And hell, there may only be three versions of Vectrex, but you can probably get all the Super Nintendo revisions for the cost of a single japanese Vectrex.

_________________
Just in case you thought something could EVER be straightforward, and needed someone to dash your hopes across the rocky shoals of harsh reality.

; write !!!


2015-11-30 13:06
User avatar

Joined: 2014-09-27 09:31
Posts: 622
 Re: SNES Hardware Revisions
Byuu, you probably already know of this document, but here it is just in case:

https://docs.google.com/spreadsheets/d/1q1H5eQYEG_evwpVmAVMAXa9UC6SAcvblr5igUnmpwRk/pub?output=html

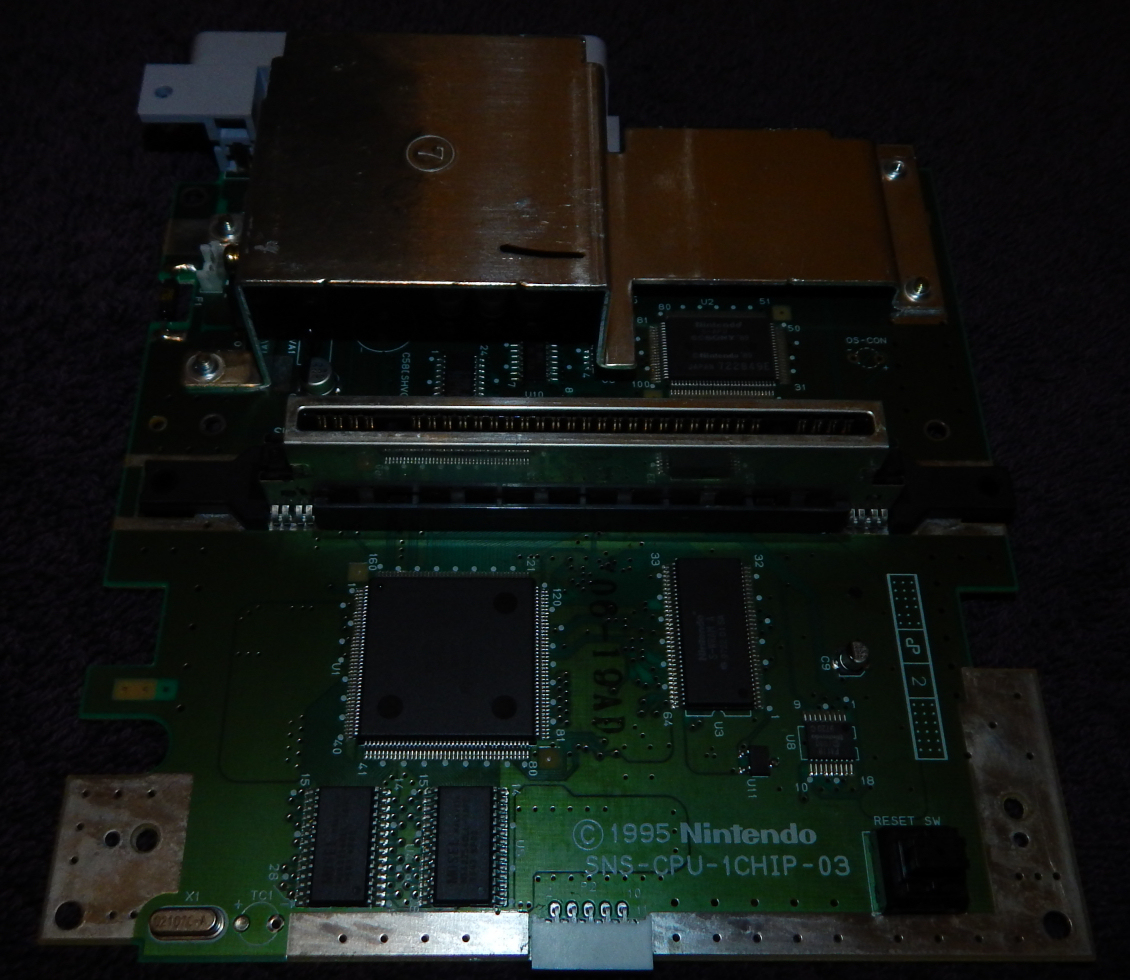

The blue section refers to NTSC revisions in the order in which they came out. I personally have the APU and the 1CHIP-03, and the difference in picture quality is night-and-day. In fact, here's my precious:



2015-11-30 14:38

Joined: 2014-09-27 09:44
Posts: 965
 Re: SNES Hardware Revisions
Firebrandx wrote:
Byuu, you probably already know of this document, but here it is just in case:

https://docs.google.com/spreadsheets/d/1q1H5eQYEG_evwpVmAVMAXa9UC6SAcvblr5igUnmpwRk/pub?output=html

The blue section refers to NTSC revisions in the order in which they came out. I personally have the APU and the 1CHIP-03, and the difference in picture quality is night-and-day.


But, you have several compatibilities issues that arise, isn't it?

CaptainJistuce wrote:
Braintrash wrote:
Don't tempt me. It is my favorite console.

At least going down that rabbit hole is simpler than getting all the Genesis variants. :P


I will take a first gen MDwith a Mega CD and I'll be happy.
Or a second gen with a Mega CD 2 worst case scenario.

CaptainJistuce wrote:
And hell, there may only be three versions of Vectrex, but you can probably get all the Super Nintendo revisions for the cost of a single japanese Vectrex.


Glad I don't collect stuff anymore. ^^

_________________
"Even if b became the most amazing programming language the world has ever seen, I would not rewrite higan/icarus in it. I can 100% guarantee you of that." — byuu


2015-11-30 15:26
User avatar

Joined: 2014-09-27 09:23
Posts: 2193
Location: Germany
 Re: SNES Hardware Revisions
Firebrandx wrote:
<img>1chip</img>

I count more than one...

_________________
My setup:
Super Famicom ("2/1/3" SNS-CPU-GPM-02) → Multi Out to SCART cable → EuroSCART to Mini cable → Framemeister (with Firebrandx' profiles) → AVerMedia Live Gamer Extreme capture unit → RECentral 4 viewing/recording software


2015-11-30 16:01
User avatar

Joined: 2014-09-27 09:44
Posts: 643
 Re: SNES Hardware Revisions
I have 1-CHIP-02. What do you need from it?


2015-11-30 16:10
User avatar

Joined: 2014-09-27 09:30
Posts: 1096
 Re: SNES Hardware Revisions
creaothceann wrote:
I count more than one...
Fixed that for ya.

_________________
http://helmet.kafuka.org
